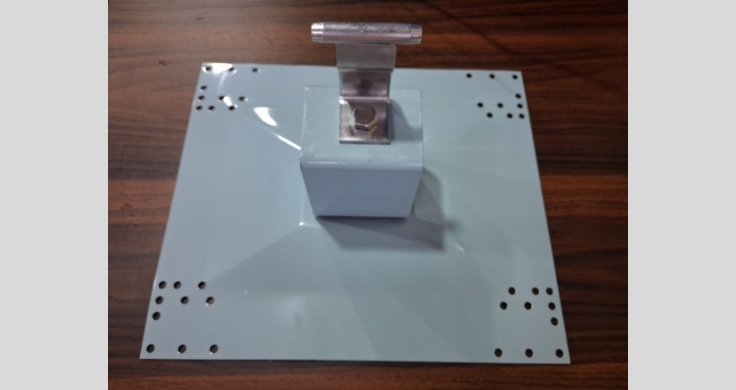

Intermediate Bracket: Essential Support for Horizontal Lifelines

At Horizzon Safety Solution Pvt. Ltd., we understand that comprehensive fall protection systems require robust support at every point. Our Intermediate Brackets are meticulously designed to provide crucial support and guidance for horizontal lifeline systems, ensuring continuous safety and smooth operation for workers traversing elevated areas. These brackets are vital components that maintain the integrity and effectiveness of the lifeline, especially over long spans.

Crafted from high-strength, weather-resistant materials such as galvanized steel or stainless steel, our Intermediate Brackets are built for exceptional durability and long-term performance in diverse outdoor environments. They play a critical role in reducing the sag of the lifeline cable, distributing loads more effectively, and minimizing potential pendulum swing during a fall. By providing continuous support, these brackets help to ensure that the lifeline maintains its intended tension and height, allowing for optimal worker mobility and fall arrest capability.

Horizzon Safety Solution offers a range of Intermediate Bracket designs to suit various lifeline configurations and structural mounting requirements. Whether for industrial facilities, construction sites, or building maintenance, our brackets are engineered for secure attachment to structures while allowing the lifeline cable to pass through smoothly without obstruction. Integrating our Intermediate Brackets into your horizontal lifeline system ensures a reliable, compliant, and continuously safe working environment for all personnel at height.

Technical Specifications for Intermediate Bracket

Feature/Specification Description
Product Name Intermediate Bracket
Product Code HS102
Height 70 mm
Width 40 mm
Pipe 8.75 × 11.85 mm
Material Density 8.03 g/cm³
Material Stainless Steel 316L
Durability Against Aging 15 years
Durability Against Chemicals 15 years
Resistance to Impact Anti-Corrosive
Resistance to Static Load (Bending) 6 kN
Joint Strength 18.96 kN
Breaking Strength 18.96 kN
Visible Defects No
Stabilized Against Corrosion
Cold/Weather Resistance 60°C
Weldable Yes
Weight 0.2 Kg
Standards Compliance EN795, NABL (as per test results)
Notes / Disclaimer The report cannot be used as evidence in a court of law without written approval of Horizon Safety. Practical variation of 4–5% may occur after installation.
